Explore our certified medical-grade ultrasound gels, optical fiber filling compounds, ECG conductive gels, and specialty standoff pads manufactured under ISO 13485 & GMP standards.
Transmission gel serves as a vital conductive and coupling medium across diverse sectors ranging from clinical diagnostic imaging and cardiology to fiber-optic telecommunications and automotive hydraulic systems. As global medical device procurement standards tighten and industrial transmission networks expand, understanding the fundamental physical chemistry, rheological properties, and acoustic matching dynamics of bulk transmission gels becomes critical for B2B importers, hospital procurement officers, and industrial OEMs.
At its core, a medical ultrasonic transmission gel acts as an acoustic impedance matching bridge between the piezoelectric crystal transducer and human cutaneous tissue. Without an appropriate coupling gel, the impedance mismatch between air ($\approx 400 \text{ Rayl}$) and human soft tissue ($\approx 1.54 \times 10^6 \text{ Rayl}$) causes over $99.9\%$ of the acoustic energy to reflect at the transducer interface, making clear diagnostic imaging impossible. China's leading wholesale transmission gel manufacturers utilize advanced vacuum micro-emulsification and polymer crosslinking to produce aqueous couplants optimized for acoustic attenuation under $0.1 \text{ dB/cm/MHz}$.
Formulated to achieve an acoustic impedance of $1.52 \text{ to } 1.62 \times 10^6 \text{ kg}/(\text{m}^2\cdot\text{s})$, matching biological tissue to minimize specular reflection and transducer signal loss.
Utilizing high-vacuum planetary mixing below 0.09 MPa to remove microscopic air pockets, preventing acoustic wave scattering and artifacts during high-frequency Doppler scanning.
Engineered with non-Newtonian shear-thinning properties (viscosity 45,000–80,000 cPs), guaranteeing smooth application under shear stress while resisting thermal liquefaction during prolonged clinical procedures.
A primary differentiator among Chinese transmission gel suppliers lies in the chemical matrix customization. Medical gels utilize highly purified acrylic acid polymers (Carbomer 940/980) neutralized with pharmaceutical-grade triethanolamine or sodium hydroxide, combined with humectants like propylene glycol to control evaporation. Conversely, industrial transmission gels (e.g., optical fiber filling compounds or NDT ultrasonic gels) incorporate synthetic thixotropic hydrocarbons, polyisobutylene, or hydrophobic silica gels engineered to withstand extreme thermal fluctuations ($-40^\circ\text{C}$ to $+80^\circ\text{C}$) without phase separation.
When selecting transmission gel manufacturers in China, international buyers must align physical material properties with their precise end-use cases. Below is an authoritative technical comparison matrix across four distinct industrial and medical transmission gel categories:
| Gel Category | Core Polymer Base | Viscosity Range (cPs) | Acoustic / Optical Property | Primary Industrial / Clinical Application |
|---|---|---|---|---|
| Diagnostic Medical Gel | Carbomer 940 / Deionized H2O | 45,000 – 70,000 | Speed of Sound: 1540 m/s | Abdominal Ultrasound, OB/GYN, Echocardiography |
| ECG Conductive Couplant | Carbomer + NaCl Electrolytes | 15,000 – 35,000 | Impedance < 100 Ω·cm | Electrocardiograms, Defibrillation, Electrophysiology |
| Optical Fiber Filling Gel | Polyolefin / Synthetic Hydrocarbon | 5,000 – 20,000 (Shear) | Refractive Index Match to Silica | Buffer Tube Hydrogen Scavenging & Waterproofing |

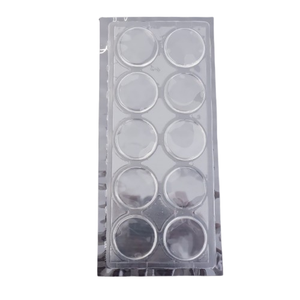

| Hydrogel Standoff Pads | Cross-linked Polyacrylamide | Solid Matrix (Elastic) | Attenuation < 0.05 dB/cm | Superficial Tissue & Pediatric Ultrasonography |
| High-Temp Industrial NDT Gel | Silicone / Polyglycol Matrix | 80,000 – 120,000 | Thermal Limit: Up to +350°C | Pipeline Flaw Detection, Aerospace Thickness Gaging |
The global transmission gel market is undergoing a paradigm shift driven by stringent medical regulation, sustainability imperatives, and telecommunication infrastructure upgrades. Importers and distributors must anticipate these key developmental trends when sourcing bulk supplies from China:
Traditional synthetic carbomers face regulatory scrutiny regarding microplastic residue and petrochemical reliance. Leading OEM factories are pioneering bio-based transmission gels utilizing natural polysaccharides, modified cellulose (CMC, HPMC), and alginate networks. These green hydrogels achieve equivalent acoustic performance while providing 100% biodegradability and reduced skin sensitization risks.
Hospitals globally are enforcing rigid infection control protocols to eliminate cross-contamination risks linked to reusable bulk squeeze bottles. Consequently, demand is surging for gamma-irradiated or ethylene oxide (EtO) sterilized single-use foil packets (20ml–50ml) and pre-filled sterile standoff gel pads. OEM producers in China are scaling high-speed automated form-fill-seal (FFS) lines to lower unit production costs for sterile single-use gels.
In telecommunications, optical fiber cable filling gels (such as OWCABLE OW-210) must meet hyper-strict hydrogen absorption specs to prevent signal loss across long-haul subsea and terrestrial cables. Future formulations incorporate nano-silica thixotropes and non-bleeding synthetic oils capable of zero-drip behavior at elevated operating temperatures up to $+85^\circ\text{C}$.
Sourcing bulk transmission gel from established Chinese OEM manufacturers offers substantial supply chain advantages, provided the facility adheres to rigorous quality control frameworks. Our manufacturing infrastructure represents the pinnacle of international standard compliance and large-scale manufacturing capacity:
Our production cleanrooms operate under Class 100,000 (ISO Class 8) air filtration standards, complete with automated bio-burden monitoring, ultra-pure water distillation (EDI), and continuous microbial testing.
Full ODM capabilities to adjust viscosity (10,000 to 100,000 cPs), color profiles (crystal clear, ocean blue, emerald green), acoustic speed, humectant concentration, and fragrance-free hypoallergenic profiles.
From 250ml clinic squeeze bottles and 1L/5L flexible cubitainers with refill spouts to 200L industrial steel drums and 1000L IBC totes for high-volume distributors.
Quality control begins with raw material qualification: every batch of Carbomer, monomer, and solvent undergoes Fourier Transform Infrared Spectroscopy (FTIR), heavy metal analysis, and micro-organism limit assays. During production, continuous rotational viscometers monitor fluid shear stress, while ultrasonic velocity meters verify acoustic impedance tolerances prior to packaging.
To assist international buyers in making informed procurement decisions, we have addressed the most critical technical and operational questions regarding wholesale transmission gels:
Whether you require bulk medical ultrasound couplants, ECG conductive hydrogels, or specialized optical fiber filling compounds, our engineering team is ready to deliver tailored solutions for your market.
